The Musicarta Keyboard Chord Generator

A Visual Glossary of Major and Minor Triads and their Inversions

The Musicarta Keyboard Chord Generator groups the 24 major and minor triads according to how they look, in terms of the black and white keys used. Open the

Musicarta Keyboard Chord Generator pdf file

for reference as you read the following introduction.


    Why a visual approach?

This new approach has been adopted because good popular-music keyboard players ‘see’ the chords they need in the keyboard, without even having to think about it. The chords are literally ‘at their fingertips’. You can fast-track this ability by studying this visual glossary and the other Musicarta chords and inversions material. Link back to the Musicarta Chord Finder page for an overview of all the material available.

This visual approach indicates five main groups of chords, with sub-groups (‘types’) making up 12 groups in all.

ANNOUNCEMENT!

If you enjoy a visual approach to keyboard creativity, you’ll like the new


Musicarta web page!

The well-schooled musician ‘sees’ the key signature in the keyboard and is pre-programme to play the ‘right’ notes. This new page presents useful, intuitive keyboard diagrams representing what the proficient musician sees in response to the twelve key signatures, arranged in logical order and with theory notes.

Click through and stop letting key signatures hold you back!

  • Group One. All white keys

    • Type One. Major chords: C, F, G

    • Type Two. Minor chords: Dm, Am, Em

  • Group Two. One black key – the third

    • Type One. Major chords: D, A, E

    • Type Two. Minor chords: Cm, Fm, Gm

  • Group Three. Two black keys – root and fifth

    • Type One. Major chords: E flat, A flat, D flat

    • Type Two. Minor chords: G sharp minor, C sharp minor, F sharp minor

  • Group Four. All black keys

    • Type One. Major chords: G flat (enharmonic F sharp)

    • Type Two. Minor chords: E flat minor

  • Group Five. The B’s

    • Type One. One black key

      • B minor (black fifth)

      • B flat major (black root)

    • Type Two. Two black keys

      • B major (black third, black fifth)

      • B flat minor (black root, black third)

(You can download and print this list for study purposes.)

    Inversiions in the Musicarta Chord Generator pdf file

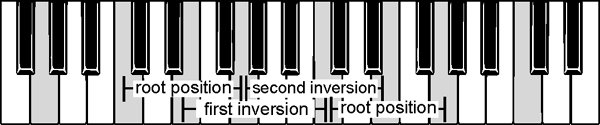

In the Chord Generator keyboards:

  • The three notes of the root position chord are indicated with circles

  • The three notes of the first inversion chord are indicated with triangles

  • The three notes of the second inversion chord are indicated with squares

...as per this legend:


    The Chord Generator inversion pattern

(This discussion is non-essential. Feel free to skim or just study the illustrations.)

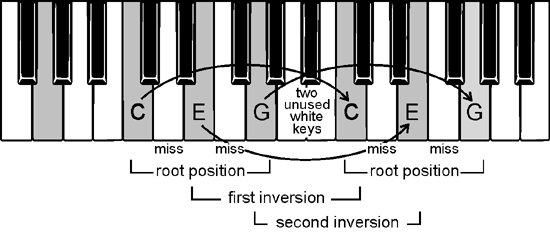

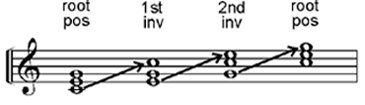

Normally in discussions of chords and inversions, the root position chord ‘flips’ upwards into the first inversion (the bottom note jumps up an octave), then the first inversion chord flips up again into second inversion. If we then flip the second inversion chord up, we get back to root position.

how to invert triads

inversion of chords

inversions

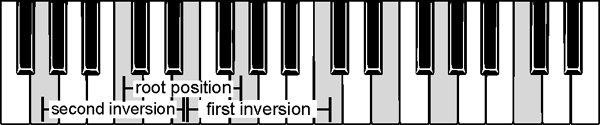

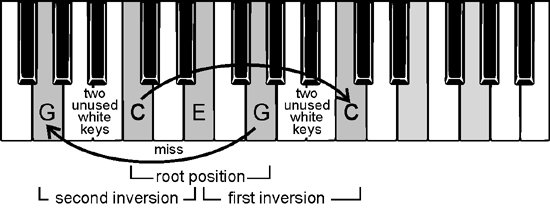

To save space, the Chord Finder uses a different arrangement: the second inversion chord is indicated below the root position chord. The root position chord flips upwards into first inversion, but downwards into second inversion.

chords in inversion

Musical triads in inversion

Inversions of triads

Note that the convention of starting from the root position isn’t based on musical values. Because our ear is naturally drawn to the top note of a chord, the first and second inversion chords are musically more pleasing. Secondly, ‘flipping’ the chords downwards should be just as easy as flipping them upwards. In the end, all parts of the upwards/downwards cycle should be equally ‘well-lit’, so that flipping either way from any inversion is equally easy.

    Using the Keyboard Chord Generator

Just go ahead and do it! Explore the chords, and use the Keyboard Chord Generator to find the chords you need for your sheet music or tab-based playing.

Get creative! Play right hand inversions, with a single bass note in the left hand (the root, or name-note, usually). Imitate the rhythm of your favourite songs and see what comes out.

Notice similarities and differences between the groups of chords:

  • The all-white-key root position major chords in Group One (C, F, G) get a black key in the middle to become minor;

  • The black-key-in-the-middle major chords in Group Two (D, A, E) change to white-key-in-the-middle to become minor.
And

  • Simple one-black-key major triads D, A and E (root position) have the black key in the middle (the third). When they fall a semitone to D flat E flat and A flat, they reverse and become two-black-key, one-white-key triads, and the white key is in the middle.

Knowledge like this is tedious to write down and explain, but this is what the musician ‘with the chords at his fingertips’ instinctively draws upon. It is usually acquired indirectly over many years, but the visual Musicarta Chord Generator and similar material across this website will help you speed up the process.

You should aim to be able to sit down with the printed bulleted text list and visualise all the chords described, group by group,in root position, flipping upwards into first inversion and downwards into second inversion.

This ability is only acquired by degrees. Take it by stages and tick off your progress on the list – the ability to self-motivate is key. Access more visual chord recognition material via the Chord Finder home page.

    The Keyboard Chord Generator and broken chord patterns

You will find Musicarta broken chord patterns (which cycle through the inversions and are essential practise) via the Broken Chords page [Pending]. In most of these broken chord patterns and studies, the inversions are marked either according to the circle/triangle/square system or in words. This will prompt you to think about inversions all the time, but will also help you use the Chord Finder to play broken chord patterns even if your sight-reading isn’t very good.

Diagrams on the Broken Chords covering page show how the system works.


Keep a copy of the Musicarta Keyboard Chord Generator by your keyboard and refer to it often. Suggestion: Have it laminated, to give it more 'presence'!
