In popular music, triads are often broken up and the three notes played one after the other in regular, repeating, ‘broken chord’ patterns. For the keyboard player, broken chord patterns offer a great way of getting more ‘mileage’ out of knowing a chord.

Watch the video or listen to the audio track. You can clearly see the three notes of the triads broken up in a number of interesting ways. If you want, jump right in and see if you can play the treble notes by ear.

CPM_M5_01

Broken chord patterns

Here is the teaching video for the first part of this module.

Now work through the text and the component videos.

If we call the three notes of a triad bottom (B), middle (M) and top (T), we can use a BMT shorthand to notate broken patterns, getting away from the notes and making the patterns easier to understand and remember.

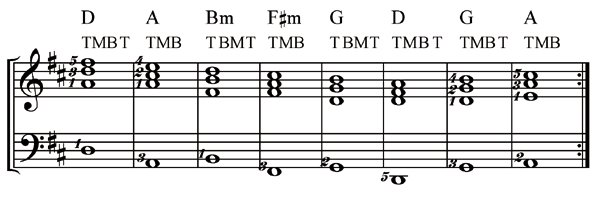

Here is an example of a broken chord pattern with the BMT ‘coding’ written in.

You don’t play the whole note chords at the start of the bar – they are just there so that:

• You can see that the chords are the same triads you just learned in Module Four, and
• You can see how the BMT coding describes the broken chord pattern.

The BMT coding for this pattern is this.

Practice the pattern until you can play it comfortably. Use the MIDI performance as a visual aid in MidiPiano if necessary.

BMT musical shorthand

Here is a ‘BMT shorthand’ sketch which indicates exactly the same performance as above.

Try to play the broken chord pattern, with a bass line, from just the BMT sketch before watching the video again.

Module audio challenge

Here is another broken chord pattern for you to play by ear.

CPM_M5_04

The rhythm and the chords are just the same, but the order of the right hand broken chord tones is slightly different.

See if you can sketch out the B, M, T pattern from just the audio. Here is your 'usual string of triads'. Pencil in what you think the BMT pattern is.

Ther a video work-out of the 'answer' at the foot of the page.

Continuous right hand broken chord patterns

The broken chord patterns so far give you time move your hand to the next pair of chords. To play continuous broken chord patterns, you have to adjust the fingering slightly to ‘keep the fingers coming’ (like a caterpillar track), so your hand can creep continuously across the keyboard.

Here's the teaching video for this section.

Now work through the component videos.

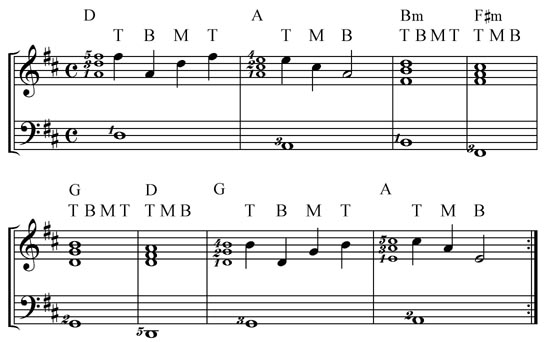

Try to play this example by ear.

The BMT coding for the pattern is this

Watch the video.

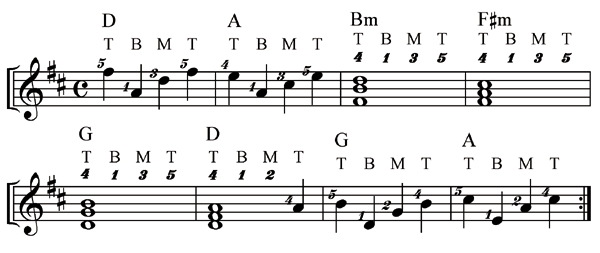

Play the Canon chord sequence right through using the broken chord pattern given, as follows.

---

The BMT coding for the next pattern is this.

This again makes a different fingering necessary.

Try to play the whole chorus (8 bars) from just this BMT sketch.

Take time out to enjoy your accomplishment. Rehearse all the patterns, experiment and get comfortable with your broken chords before going on to the next section.

A BMT challenge

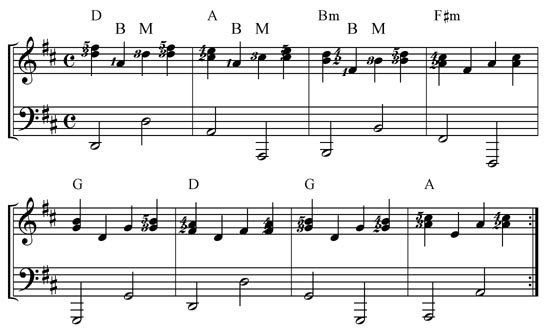

Combine the Module Four thirds with a broken chord texture. Use the last BMT pattern again but play thirds where it says ‘T’ instead of a single top note. Play the pattern over the ‘bouncing’ bass line from Module Four.

CPM_M5_07

Try to work just from the instructions and the audio first. Remember the Module Four advice about ‘build-ups’ – practice over a simple bass line first.

Go to 'Answers' below for more visual learning and the written-out music.

---

Answers

Module audio challenge

The BMT pattern for your BMT audio challenge (1) is this.

Listen to check your understanding.

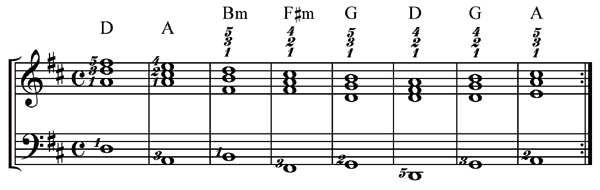

Try to play the pattern right the way through the chord sequence using just the audio and the BMT coding first. Here is the chord sequence to remind you.

Here's a video work-through of the 'answer'. Put the video on repeat and cover the triads shown.

The actual music shows a mixture of chords, notes and pure BMT shorthand.

Here's the MidiPiano-only performance.

A BMT challenge

Here's the MidiPiano 'solution' work-out: plain triads over the audio first, then the 'answer' over a bouncing bass line.

You have to pay attention to the fingering (5-3 to 4-2) to avoid a 'hopping' sound. Here's a teaching video for the continuous BMP pattern fingering.

---

Practice suggestion: Go digital!

Even as a novice, you can easily make backing tracks from commercial Canon recordings using ‘Audacity’, the free, easy-to-use sound editor. Download and install, then Google “Editing audio in Audacity” and follow the simple instructions from the web page.

If you don’t want to have Audacity running as you play, you can make and save longer backing tracks with a simple copy-and-paste operation, just like in a word processor. If you want to save your tracks as MP3 files, you will need an additional (free) MP3 encoder. You can read it all up on the Audacity site.

Audacity also offers more accurate ‘looping’ than Windows Media Player’s ‘repeat’ function. If you don’t need to trim your sound clip, shift+spacebar automatically turns Audacity’s ‘loop’ feature on. If you do need to trim, the internet offers plenty of Audacity tutorial material. It's very intuitive.

You will find your Canon Project backing tracks (designated CBT_…) in the Canon Backing Tracks folder. Your Musicarta Canon Project backing tracks are cut off exactly at chorus-end, so whether looping or extending, your backing track will always stay in time.

Audacity and MidiPiano provide an excellent introduction to digital audio, with all its potential in learning situations. Once you have mastered the essentials, you will easily think of many applications – and classical teachers especially will benefit with their pupils from demonstrating a bit of digital know-how!
