The Musicarta Canon Project

Transposing the Canon Chord Sequence
- Module One -

This is the Part One of the Musicarta Canon Project four-module 'Transposing' mini-series. It is intended for players who have completed the study programme because it assumes you know the Canon chords well.

The ability to transpose – to change the key of some music in your head and play it higher or lower than the original – is one of the things that defines a really proficient musician. Most professional musicians, both modern and classical, can transpose – some astonishingly well.

You can really only say you know a chord sequence, or a tune, or a riff, when you can transpose it. This works the other way round – if you really want to know a tune, or a riff, or a chord sequence, try transposing it. You soon start to see the relative size of the steps between the notes or chord roots, plus many other pattern features, and this will make it a lot easier to remember.

Younger pupils’ ability to learn to transpose is generally underestimated. The spin-off in terms of skill and progress of regular practise in transposing is significant, if hard to attribute precisely.

Transposing Module 1

Transposing Module 2

Transposing Module 3

Transposing Module 4

The Roman numeral system of naming chords

The Roman numeral system (RNS) of naming chords uses Roman numerals to refer to the chords, not just of one key, but of any key. It is therefore extremely helpful in transposing.

Take the trouble to understand this way of naming chords, because by doing so can use the chord sequences you learn this way in any key, and the system also helps you learn ‘how harmony works’.

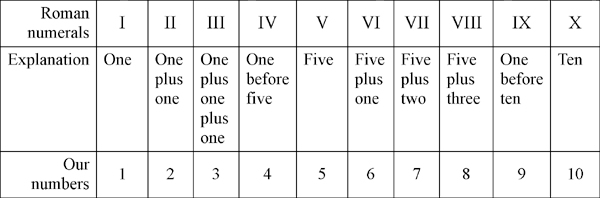

The Romans wrote numbers like this.

Transposing the Canon

Check that you understand how the system works. You add up ‘ones’ to three, four is ‘one before five’ (represented by V), then you add ones to five until nine, which is ‘one before ten’ (X). Write the numbers out forwards and backwards, then the even numbers and the odd numbers, and so on.

The chords of C major in the RNS

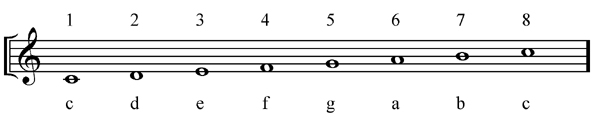

Here is a C major scale – the white keys from C to C. Note names are given below, and the ‘scale degree’ numbers (the steps of the scale) above.

Transposing the Canon
CPM_T1_01

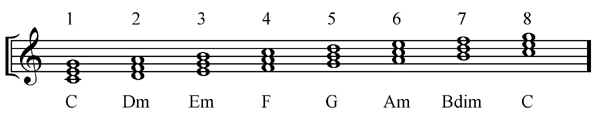

Now look at the simple chords (triads) we can build on each step of the scale using just the C major scale degrees by playing every other white key. (These chords are named after the lowest note.)

Transposing the Canon
CPT_01_01-2
CPM_T1_02

It turns out that some of the chords built from the C major scale tones are major (C, F and G), and some are minor (D minor, E minor and A minor – Dm, Em and Am), depending on whether the middle note – counting in semitones – is closer to the top note or the bottom note of the triad. (One chord, which we ignore for now, is a third type, called the 'diminished'.)

To use the Roman numeral system (RNS) to designate (stand for) the chords, we have to adapt it to show the difference between major and minor chords.

Major and minor chords in the RNS

The Roman numerals given in the first table in this module are 'CAPITALS', or 'UPPER CASE'. We use these to designate major chords, and 'lower case' Roman numerals to designate minor chords.

Transposing the Canon

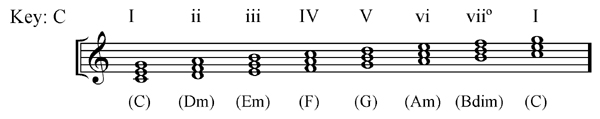

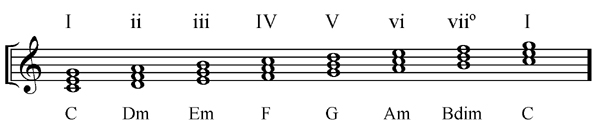

So we designate our seven different chords as follows:

Transposing the Canon
CPT_01_02

This combination of major and minor chords is true for every major key.

  • The chords built on the first, fourth and fifth scale degrees are always major (I, IV, V)
  • The chords built on the second, third and sixth scale degrees are always minor (ii, ii and vi)
  • The triad built on the seventh scale degree is always diminished (indicated by the small circle after the lower case viiº).

The sharps or flats in a key signature produce the right combination of black and white piano keys to produce this I, ii, iii, IV, V, vi ‘key family’ of chords.

Transposing the Canon
CPT_01_02

Once you've practised using the Roman numeral system for a while, you start to think:

    “In the key of C (or, in fact, any key), ‘One’ is major (C major), ‘Two’ is minor (D minor), ‘Three’ is minor (E minor), ‘Four’ is major (F major)…”

…and so on. This understanding of ‘key’ is hard to achieve any other way.

The chords of D major in the RNS

You have been playing the Canon in D major, its original key.

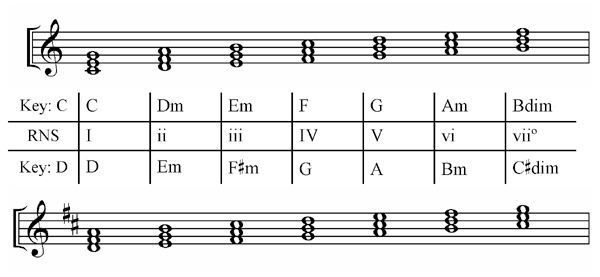

The key chords of D major follow the same major/minor (I, ii, iii, IV, V, vi) pattern as every major key. Here’s how they look side by side with the chords of C major.

Transposing the Canon
CPT_01_03

Try to copy the audio performance file. Work done playing scales pays off here, helping you remember the F and C sharp s of the D major key signature.

Transposing the Canon chord sequence into F

We are going to transpose the Canon chord sequence from D major into F major.

Revise the key of F (key signature, B flat), both scale and chords.

Make a transposing table for D major to F major

Transposing the Canon
CPM_T1_04

Listen to and copy the audio/MIDI performance files to make sure you can play the key chords in both keys. You play the eight triads in D, then in F, then in D and in F again.

The Canon chord sequence in D major is:

Transposing the Canon

Using the transposing table above, we see that the Canon chord sequence in RNS chord symbols is:

Transposing the Canon

(If you play the roots of the chords in this RNS chord sequence, you will hear the familiar Canon bass line.)

Read off the Canon chord sequence from the RNS chord symbols in the middle row of the table into Canon-in-F major chords in the bottom row:

Transposing the Canon

Don’t try to play the chords just yet. Play just the roots of the chords (the name-notes in the chords symbols) with the left hand, and you will hear the familiar Canon bass line, only in the key of F.

Left hand accompaniment in F major

Using just the scale tones of F major (white keys except B flat), you are going to build root, fifth, octave, tenth (R, 5, 8, 10) accompaniment ‘ladders’ on the roots of the Canon-in-F-major chord sequence:

Transposing the Canon

But if we follow our usual zigzag bass line, we will be starting too high (or going too low), so use low F both times.

Transposing the Canon
Transposing the Canon

The bass is shown in this video.

CPM_T1_05

Transposing the right hand parts

The Roman numeral system works well for transposing chords, but transposing the right hand parts requires a different approach.

Look at our original string of thirds in D major:

Transposing the Canon
CPM_T1_06

The numbers above the notes are the D major scale degrees, counting up from D (here indicated by R for root), regardless of what the chord is.

Make sure you can see how the numbers relate to the D major scale before going on.

Here is the same information in the key of F major:

Transposing the Canon
CPT_01_06-7
CPM_T1_07

Now you are counting up from F = R = 1. Your biggest challenge in transposing to F is to remember which black keys to play. You change from F sharp and C sharp in D major to just B flat in F major.

Here are the two versions with the black keys ringed.

Transposing the Canon
CPM_T1_08

Play through the two strings of thirds one after the other (use the 06-7 video). There are far fewer black keys in the F major version.

Now put the thirds in F and the accompaniment together.

Transposing the Canon
CPT_01_05

You might think the treble sounds a bit thin, up so high. Try playing the thirds an octave lower.

Transposing the Canon
CPT_01_09

There are quite a lot of ‘clashes’ here, where the left hand has to play notes the right hand is already playing (circled in the next example). Use the sustain pedal, if your keyboard has one, and release the right hand notes just in time for the left hand to play them. The MIDI file, played on MidiPiano, shows this clearly. It is quite usual to have to ‘get out of your own way’ like this.

Play along with the performance file.

Transposing the Canon

 - ERRATA: There are two 'clash' notes in the Bb bars -

Playing with a guitarist

Because it leaves plenty of room in the treble, the version above is also a good two-handed accompaniment for another instrumentalist to improvise over. Get a guitarist friend to put a capo on the first fret and play along using these chords.

Transposing the Canon

The guitarists 'capo' is an instant transposing device - the capo at the first fret raises the guitar chords a semitone, effectively putting the chord sequence into F major.

Transposing is the musical skill. It's said that you don't really know a chord sequence until you can transpose it - and conversely, if you do want to know a chord sequence inside out, transpose it!

Click through to Module Two of the Canon Transposing mini-series to continue honing your skills.
